Product characteristics:
- Function of remote control:
- On / Off LED strip
- Quick select of color temperature and brightness
- Adjust color temperature (From 3000K to 6500K) – 7 Levels
- Adjust output brightness of Tunable white LED strip – 11 Levels
- PTWC20 receiver – Paragon. Transmit signals to Tunable white LED strip and operate with a voltage range between 5-24v DC.
- Receiver is connected to LED strip, allowing users to control the brightness and color temperature via the remote control.
- Product is equipped with overload surge and overheat protection
- Pulse Width Modulation: 4000 Steps
Application:
Tunable white LED controller PTWC20 – Paragon, is to be used in conjunction with Tunable white LED strip lights only.
Product standards:
Designed and manufactured in accordance to IEC 60598

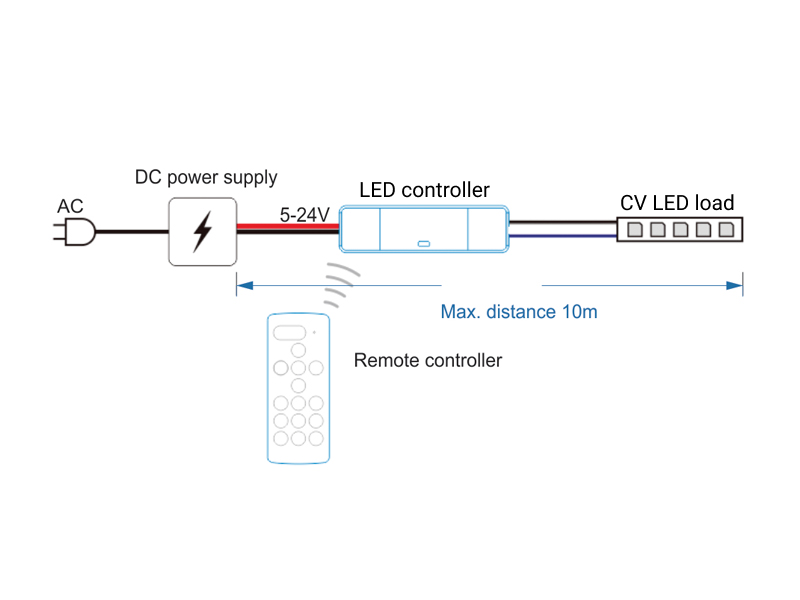

Installation guide:
