PRGB30/A – RGB Amplifier

PRGB30/A   Paragon ,

546.000VND

Buy now Wholesale
Product Description

PRGB30/A is used to amplify voltage and current, ensuring uniform lighting of LED strip from start to the end.

Technical Specifications
Voltage : DC 5-24V / 433.92MHz

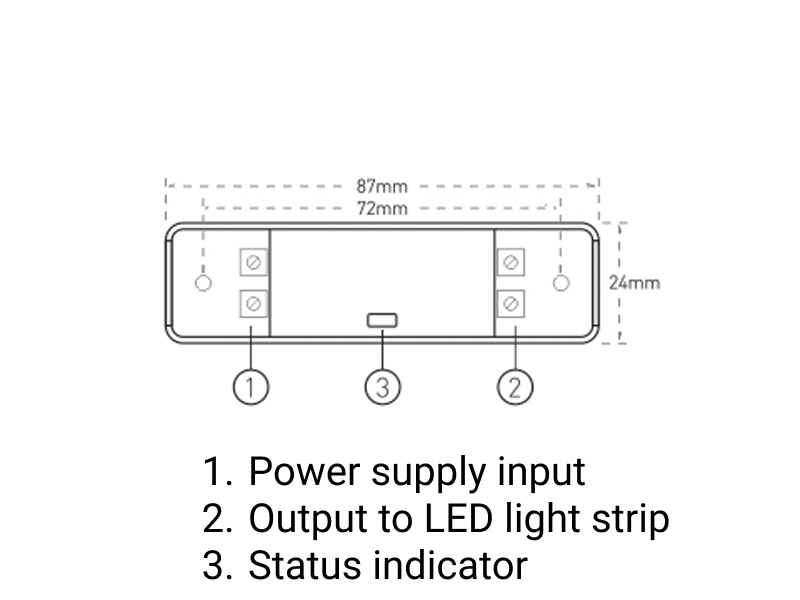

Dimensions : 87x24x15mm mm
Warranty : 2 year
Rated output current : 3x4A
Overload protection : Có
Overheating protection : Có
Operable distance : 20m

Product characteristics:

  • Function:
    • Ensure consistent color clarity and uniform brightness throughout LED light strip
    • Prevent LED light strip from flashing and chasing
  • Product is equipped with overload surge and over temperature protection
  • Pulse Width Modulation: 4000 Steps

Advantages:

  • Constant brightness and light uniformity from start to end of LED light strip

Application:

RGLED amplifier PRGB30/AParagon, is to be used in conjunction with RGB LED strip lights only.

Product standards:

Designed and manufactured in accordance to IEC 60598

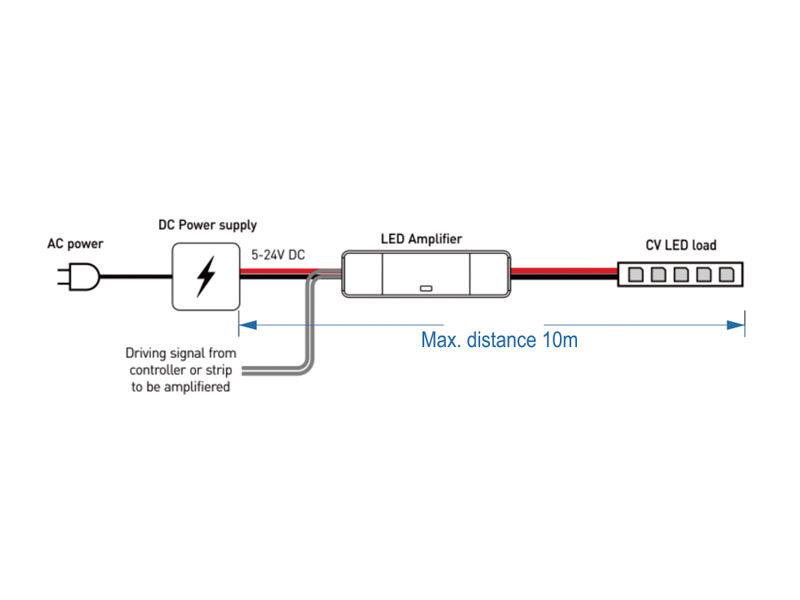

Installation guide:

Download leaflet
