Why Heat Dissipation Determines LED Lifespan

Most buyers compare LED lights by wattage and price. But the factor that decides how long an LED actually lasts is something far less visible — thermal management.

When an LED chip operates, only 30–40% of electrical energy converts into light. The remaining 60–70% becomes heat, concentrated at the semiconductor junction — known as Junction Temperature (Tj).

Per IES LM-80 standard: a 20°C rise in Tj cuts LED lifespan by 50%. Conversely, reducing Tj by just 11°C can extend operational life by up to 25,000 hours. (Source: Lighting Research Center, Rensselaer Polytechnic Institute)

The heat sink is the only component that controls Tj. Choose the wrong material, and the chip degrades fast — even if every other component is premium quality.

The Three Most Common LED Heat Sink Materials

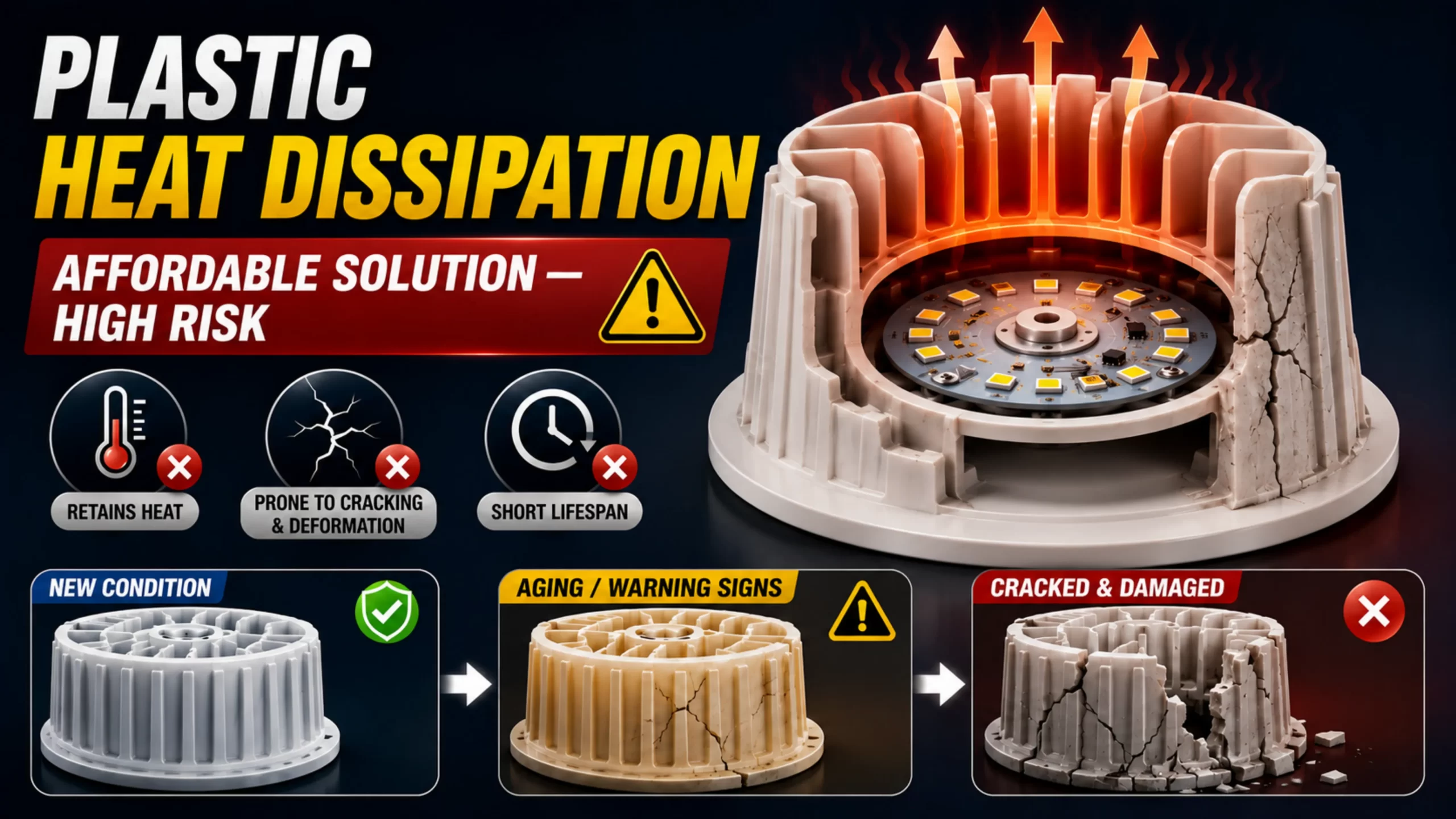

1. Engineering Plastic (PC / PBT) — Low Cost, Right Application Only

Polycarbonate (PC) and PBT plastics are common in low-wattage LED bulbs and downlights under 10W. Thermal conductivity sits at just 0.1–0.3 W/mK — roughly 800 times lower than aluminum.

The advantages are real: plastic weighs 40–50% less than aluminum, enables complex molding, and keeps production costs low. For small-wattage fixtures with limited heat output, a well-ventilated plastic housing can handle passive cooling adequately.

The problem begins when plastic is used beyond its thermal capacity. A plastic shell on an 18W LED panel traps heat instead of dissipating it — pushing Tj upward continuously and reducing rated lifespan from 50,000 hours down to 10,000–15,000 hours in real-world use.

✅ Best for: ≤ 10W fixtures, open spaces, operating fewer than 6 hours/day.

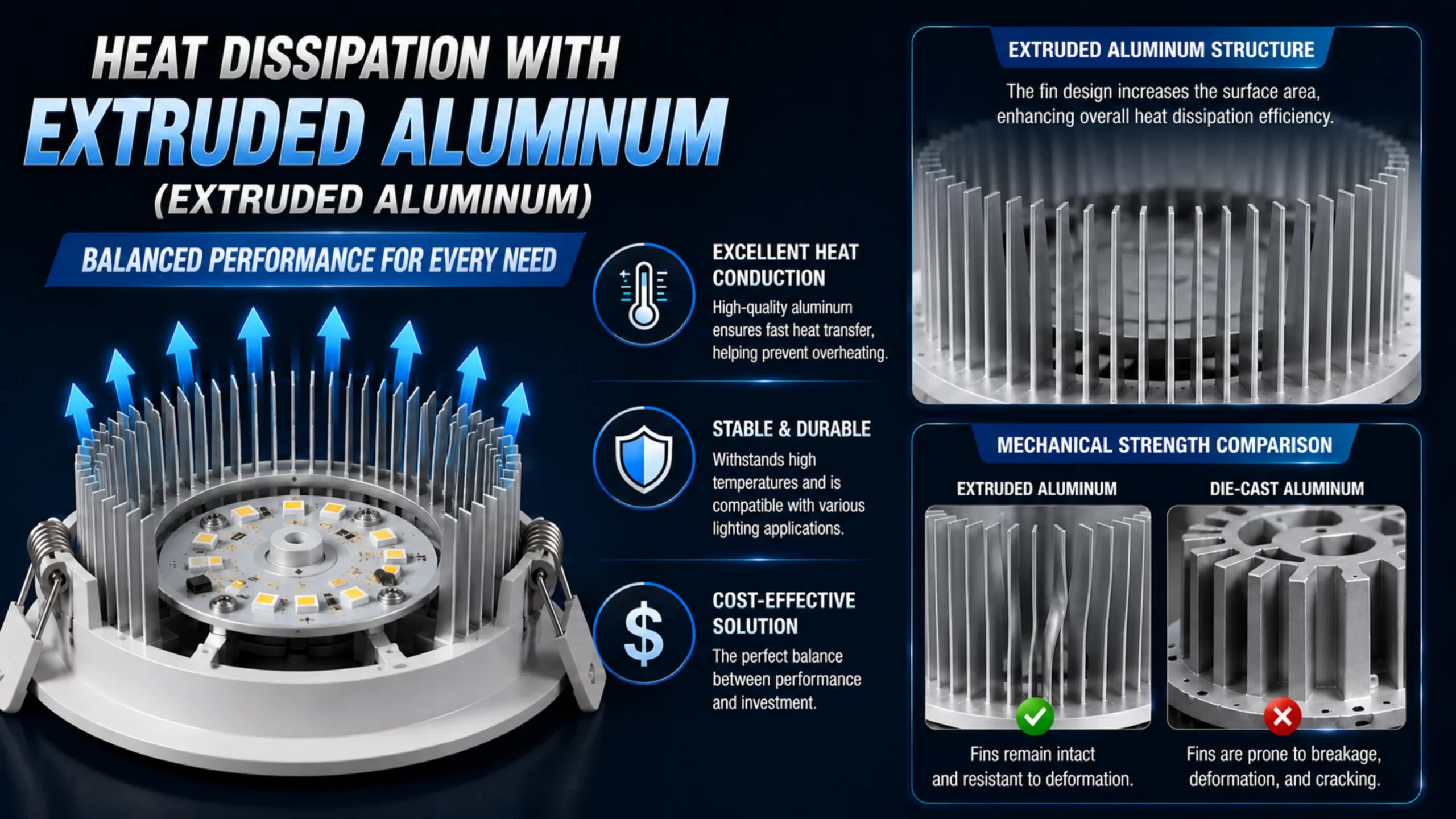

2. Extruded Aluminum — The Best All-Around Choice

Extruded aluminum delivers thermal conductivity of 170–251 W/mK — the highest of the three materials. The extrusion process creates thin, densely packed cooling fins that maximize surface area and promote continuous natural convection — no fan required.

This is the standard for LED tube lights, office panel lights, and recessed downlights from 15W upward. Any space that runs lights for more than 8 hours daily — offices, schools, retail — should require extruded aluminum as a minimum specification.

The one limitation: mechanical durability is lower than die-cast. Thin fins can deform under impact, and pure extruded aluminum is less suitable for harsh outdoor environments.

✅ Best for: 15W–60W fixtures, offices, schools, indoor commercial spaces.

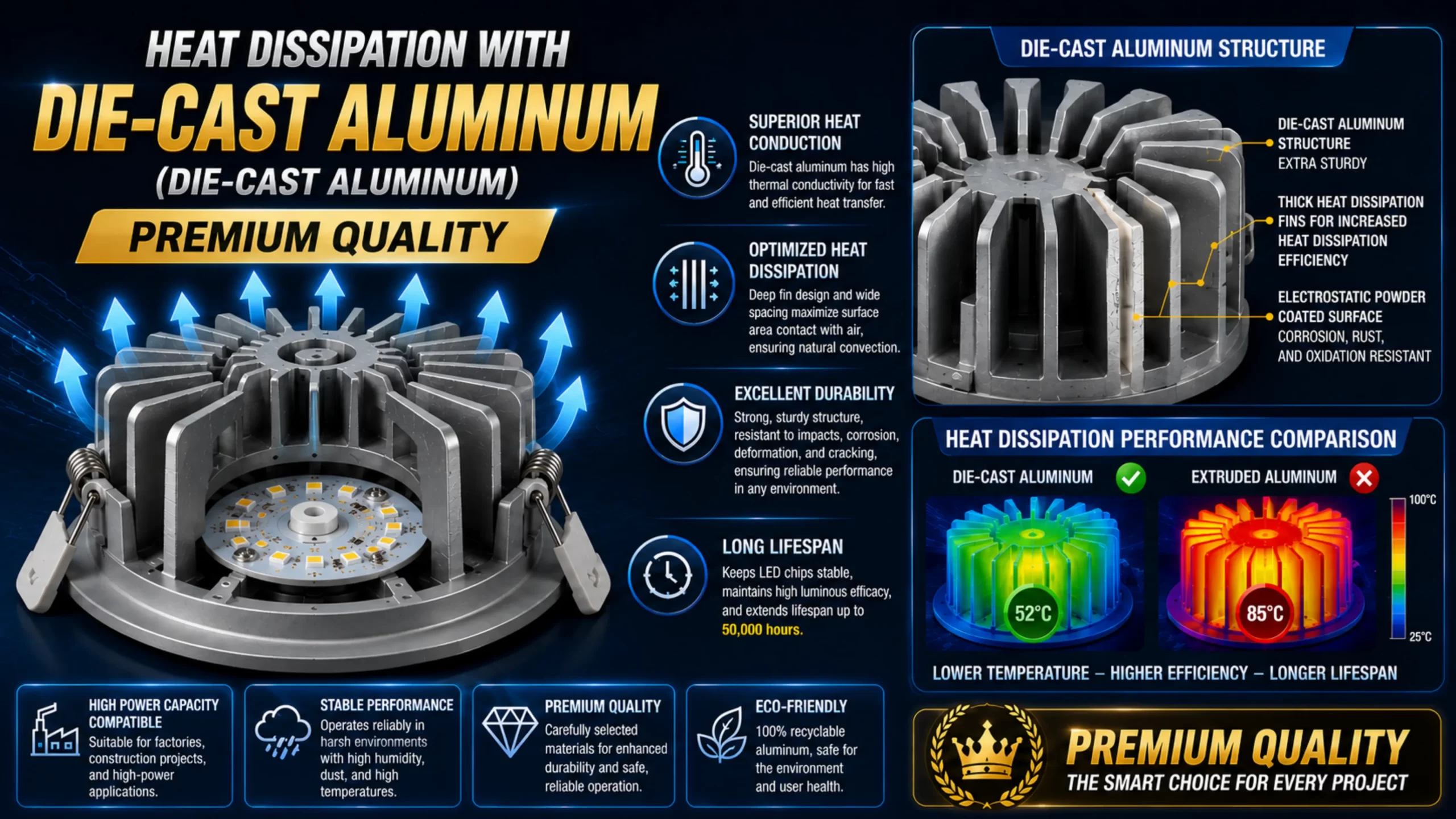

3. Die-Cast Aluminum — The Engineering Standard for Demanding Applications

Die-casting injects molten aluminum-zinc alloy into high-pressure molds. The resulting crystal microstructure is denser than extruded aluminum, yielding thermal conductivity of 96–120 W/mK depending on alloy composition.

The advantage of die-cast is not purely the conductivity number — it is structural integration. The housing, heat fins, and LED mounting base are cast as a single unit, eliminating thermal interface resistance between components. This lowers total thermal resistance more than raw conductivity figures suggest.

Die-cast aluminum also provides superior mechanical strength, corrosion resistance, and IP-rating compatibility — essential for industrial high-bay fixtures, outdoor floodlights, and large-scale commercial projects.

✅ Best for: ≥ 50W fixtures, warehouses, outdoor installations, commercial projects.

Quick Comparison: Three Materials Side by Side

How to Spot a Poor Heat Sink Before You Install

After 28 years developing LED products at Paragon, I have found three quick checks that reveal heat sink quality without any instruments.

Signal 1 — Smooth, finless housing: Quality fixtures always have fins, ridges, or ribs on the back surface. A completely smooth shell is a cost-cutting sign — reduced surface area means reduced heat dissipation.

Signal 2 — Hollow knock sound: Tap the housing. Metal gives a solid, resonant sound. Plastic gives a dull, hollow thud. Not a definitive test, but useful when purchasing in-store.

Signal 3 — Localized hotspot after 30 minutes: A well-managed heat sink distributes warmth evenly across the housing, typically 45–55°C. A single point exceeding 70°C while the rest stays cool indicates thermal bottlenecking — heat is accumulating, not escaping.

How Paragon LED Selects Heat Sink Materials

At Paragon, material selection is always driven by actual operating wattage — not minimum production cost.

Consumer-grade fixtures at ≤ 9W use engineering plastic housings with open-ventilation geometry, sufficient for passive cooling at low thermal loads. All fixtures from 15W upward use extruded or die-cast aluminum, with fin geometry optimized through CFD thermal simulation before mass production begins.

Good material alone is not enough. Fins pointing the wrong direction, or a fixture installed in a sealed ceiling cavity, can still cause thermal buildup. Effective heat management requires the right material, the right geometry, and the right installation condition — all three together.

Our full industrial and project lighting range uses single-piece die-cast aluminum housings, ensuring consistent performance across decades of continuous operation in high-temperature, high-humidity environments.

Conclusion: Match Material to Application, Not to Price

There is no universally “best” material. Engineering plastic works well for low-wattage fixtures when designed correctly. Extruded aluminum is the right standard for office and commercial indoor use. Die-cast aluminum is the only reliable choice for high-wattage and demanding outdoor environments.

The right question when buying LED lights is not “how many watts?” — it is “what is the heat sink made of, and does it match where I am installing this?”

If you need expert advice on heat sink specification for a specific project, Paragon’s engineering team offers free spec sheet analysis. Contact us and we will help you choose correctly from the start.
