High-power LEDs are the cornerstone of the professional lighting industry, dominating industrial, outdoor, and commercial applications due to their superior lifespan, energy efficiency, and design flexibility. However, a core technical challenge persists. To achieve high luminous flux, LED chips must be operated at high currents, which in turn activates a phenomenon known as “Efficiency Droop.” This causes the LED to become less efficient at converting electrical power into light as the current increases. This paradox represents a significant engineering hurdle, impacting the system’s energy efficiency, thermal management, and total cost of ownership.

This article is intended for lighting industry professionals, including distributors, contractors, and project engineers. Our goal is to provide a comprehensive technical understanding of efficiency droop, from its physical origins to its practical implications. This knowledge will empower professionals to make more informed decisions, selecting products that deliver optimal long-term value and performance.

Characterizing the Efficiency Droop Phenomenon

To understand this challenge, we must first precisely define our terms. Luminous Efficacy, measured in lumens per watt (lm/W), is the key metric and the critical headline figure on product datasheets.

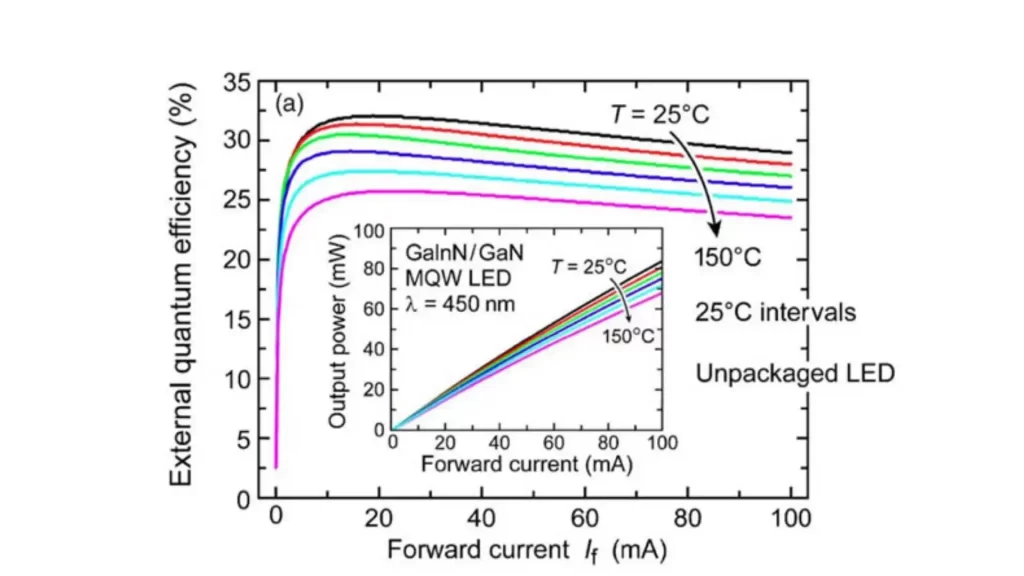

The efficacy of a high-power LED peaks at a very low drive current. At this level, however, the total light output is insufficient for practical applications. Manufacturers must therefore increase the current, sacrificing some efficacy to generate a useful amount of luminous flux. This is the central trade-off in high-power LED design.

It is crucial to distinguish between two separate droop phenomena:

Current Droop: The intrinsic decline in efficiency as current density increases, independent of thermal effects.
Thermal Droop: The decline in efficiency as the junction temperature ( $T_{j}$ ) of the LED chip rises.

The Microscopic Origins of Droop

Efficiency droop is the result of multiple complex physical mechanisms.

Primary Cause: Non-Radiative Auger Recombination

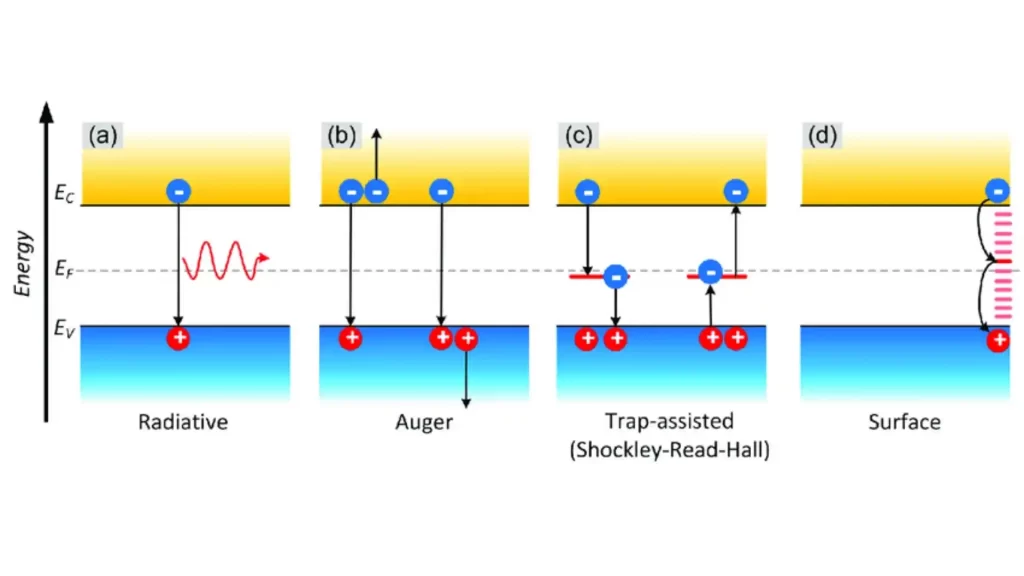

In an LED chip, electrons recombine with “holes” to generate photons of light in a process called radiative recombination. However, at high currents, a competing process, Auger Recombination, becomes dominant and is the primary cause of efficiency droop. In this process, an electron-hole pair recombines but, instead of creating a photon, transfers its energy to a third electron. This electron then loses the energy as heat, not light. The rate of the Auger process is proportional to the cube of the carrier density, which explains why it becomes so severe at high currents.

Contributing Factor: Electron Leakage

A second major loss mechanism is Carrier Leakage. This occurs when electrons are not effectively “captured” within the active region. Instead, they “leak” out and recombine non-radiatively, generating heat.

This problem is exacerbated by the internal polarization fields within the GaN crystal structure, which cause the Quantum-Confined Stark Effect (QCSE). This effect reduces the effective height of the energy barriers, making it easier for electrons to “overflow” at high currents.

Practical Consequences for Luminaire Design and Selection

Efficiency droop has a direct impact on luminaire design and cost.

The Cost vs. Efficacy Trade-off

This phenomenon creates two primary design philosophies:

Low-Cost / High-Current Design: The manufacturer uses fewer LED chips, each driven at a very high current to meet the target luminous flux. This pushes them deep into the droop region, resulting in low efficacy but reducing the initial bill of materials (BOM) cost.
High-Efficacy / Low-Current Design: The designer uses a greater number of LED chips, each driven at a lower, more efficient current. This approach increases the initial cost but delivers significant long-term energy savings.

Thermal Burden and Total Cost of Ownership (TCO)

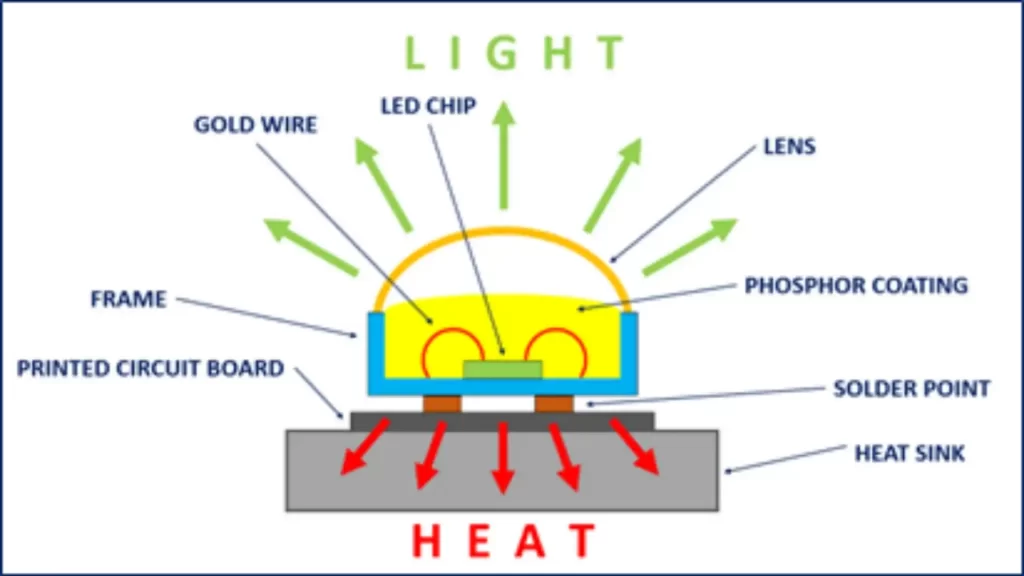

Efficiency droop means more energy is converted into waste heat. A low-efficacy luminaire generates a greater thermal load, necessitating a larger, more expensive thermal management system (i.e., heat sink).

For large projects, the Total Cost of Ownership (TCO) is the most important metric. A luminaire with a low initial price can have a much higher TCO due to soaring energy costs over many years of operation. For example, in a project with 100 high-bay fixtures, a high-efficacy design, while perhaps 30% more expensive upfront, could save thousands of dollars in energy costs over a 10-year period, resulting in a significantly lower overall TCO.

The Industry’s Engineering Solutions

The industry has developed advanced solutions to combat droop.

Innovations in LED Chip Architecture

The battle begins at the semiconductor level.

Advanced Quantum Well (QW) Engineering: Using thicker quantum wells helps to reduce carrier density, thereby mitigating Auger recombination. Graded-composition quantum well (GQW) structures help counteract polarization fields and reduce electron leakage.
New Substrates and Crystal Orientations: Growing LEDs on semi-polar or non-polar substrates can eliminate the polarization fields, enabling the creation of very low-droop LED chips. However, the manufacturing cost of these substrates remains high.

System-Level Strategies

Luminaire designers also play a critical role.

Drive Current and Driver Optimization: Selecting the optimal operating point for the drive current is a critical balance between luminous flux, efficacy, cost, and lifetime. Using high-efficiency drivers also minimizes overall system energy loss.
Phosphor Droop: In white LEDs, the phosphor layer can also suffer from efficiency droop due to high temperatures and high photon flux. Manufacturers address this using improved phosphor materials or remote phosphor architectures.

Selecting for Success: A Professional’s Guide

Professionals can make more strategic product selection decisions.

How to Read a Datasheet

When evaluating a luminaire, look beyond the “headline” efficacy number.

Look for the Graphs: Focus on the “Relative Luminous Flux vs. Current” and “Forward Voltage vs. Current” graphs.
Calculate Real-World Efficacy: Use these graphs to estimate the efficacy (lm/W) at your project’s intended operating current.

Key Questions to Ask Manufacturers

At what drive current was the headline luminous efficacy measured?
What is the luminaire’s efficacy at its maximum operating current?
What chip-level technologies does the company use to mitigate efficiency droop?
What is the thermal resistance of the system?
What is the 10-year Total Cost of Ownership (TCO) of the high-efficacy model versus the low-cost model?

Conclusion

Efficiency droop is a fundamental challenge in high-power LED technology, governed by Auger recombination and material structure issues. This phenomenon creates a critical trade-off between initial cost and long-term TCO. However, the industry is constantly innovating to address it. By understanding the principles, recognizing the consequences, and asking the right questions, professionals can confidently select the best systems to ensure long-term value and performance for their clients. The future of lighting is not just brighter, but smarter.
